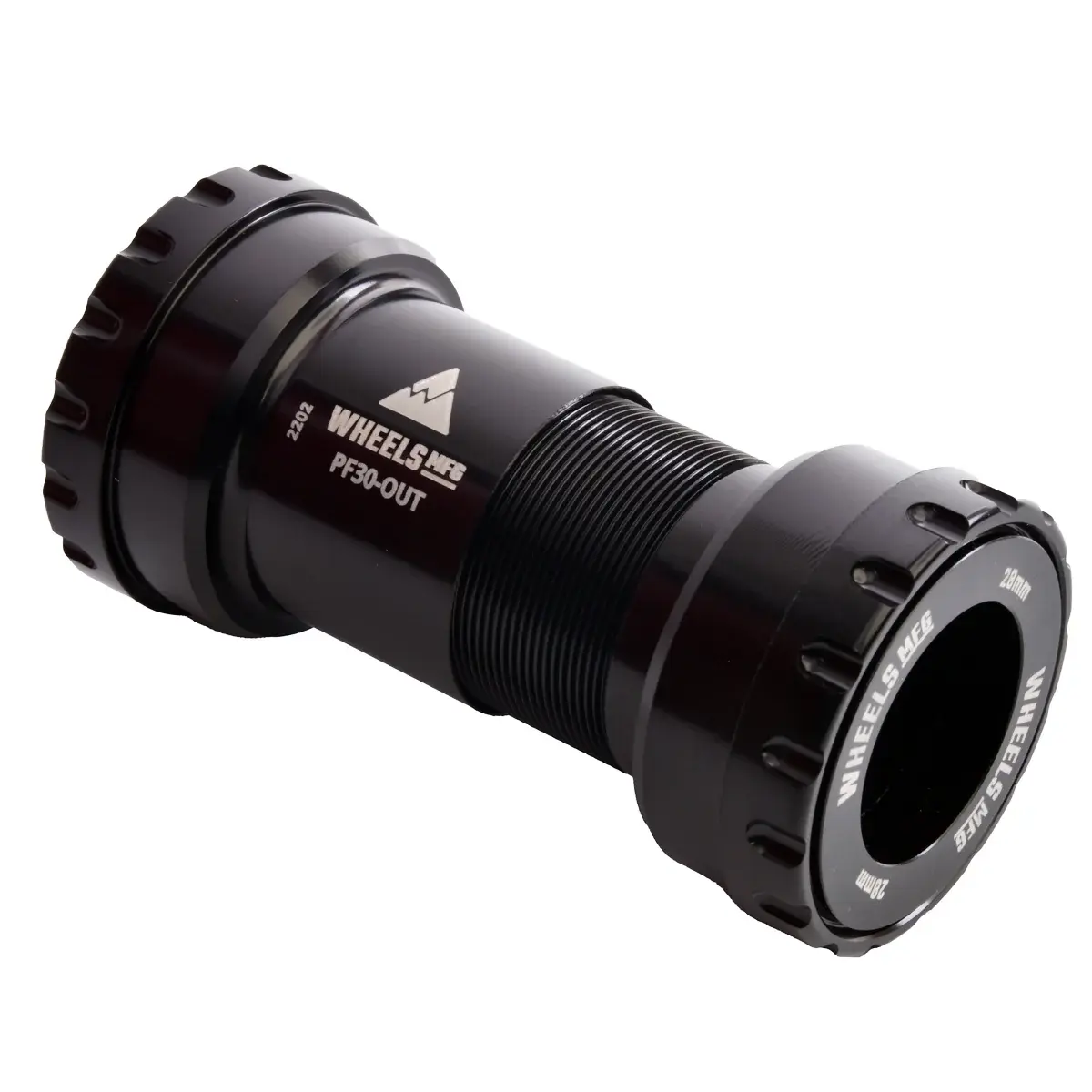

PF30 Outboard ABEC-3 BB for M30 28/30mm Praxis - Compatible Cranks - Black

PF30 bottom bracket with outboard bearings for use with M30 28/30mm spindle Praxis - comptiable cranksets. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

SPECIFICATION

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 83mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 28/300mm
Tool Pattern: 48.5mm x 16 notch
Weight: 151g
Packaged for retail display
* Specialized Carbon OSBB with 61mm shell width will need additional cup spacers.
- Over Bearing Width Dimensions include supplied silicone dust shields.

COMPATIBILITY

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):

PF30
Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.
Compatible with 28/30mm spindle diameter cranksets. Overall spindle length must be 103mm or longer when used in a 68mm wide shell, or 109mm or longer when used in a 73mm wide shell.
