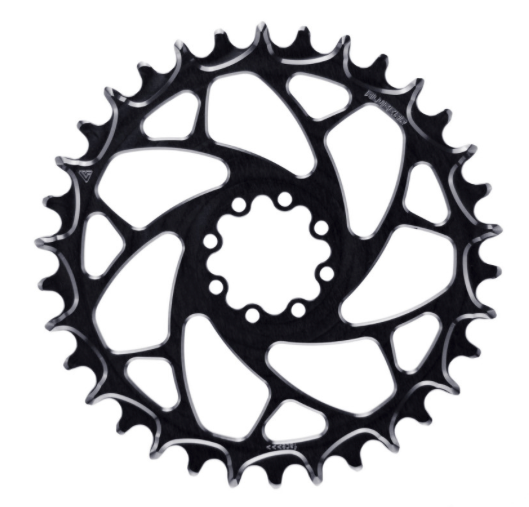

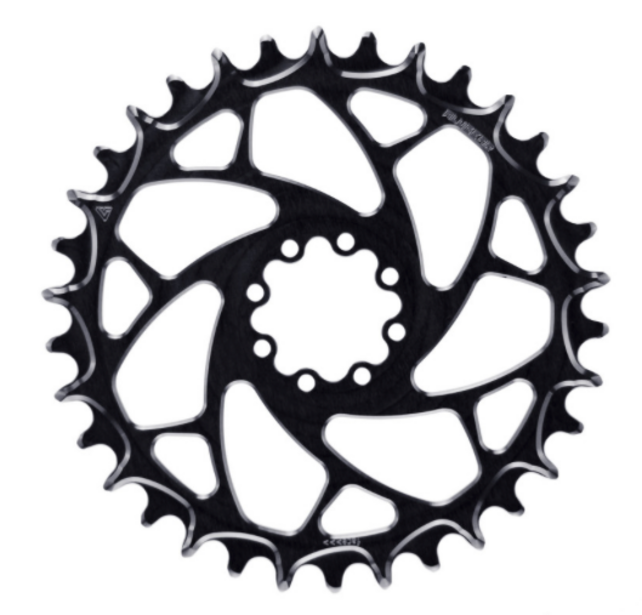

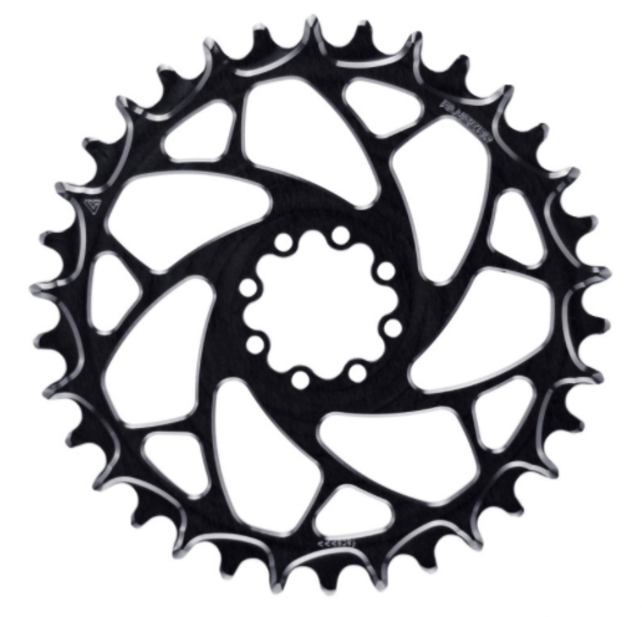

Alugear Direct Mount Chainring - 8-bolt - 11/12 speed Sram/shimano chains

Super Boost chainring for Sram 8-bolt direct mount. High quality aluminum construction. Compatible with 11 and 12 speed shimano and sram chains including Eagle, T-type, and HG+.

TECHNICAL SPECIFICATIONS

• Offset: 26T-42T  0,0mm

• Weight: 26T- 46g; 28T- 51g; 30T- 56g; 32T- 62g; 34T- 69g; 36T- 74g; 38T- 79g; 40T- 85g; 42T- 89g

• Diameter: 26T- 115mm; 28T- 124mm; 30T- 131,5mm; 32T- 138,6mm; 34T- 148mm; 36T- 154,2mm; 38T- 161,3mm; 40T- 171,0mm; 42T- 179,0mm

• Material: 7075-T6 aluminum

• Made: CNC milling

• Surface coating: Anodizing

COMPATIBILITY

• For cranks MTB SRAM 8 bolts Direct Mount

• Optimal use with boost and super boost spacing.

• MTB chainrings you may use the following chains: aSRAM chains - 11sp, 12sp Eagle, 12sp T-Type;  Shimano chains - 11sp, 12sp HG+

INFORMATION

ALUGEAR is specialized in the production of high-quality bicycle components.

ALUGEAR chainrings are some of the lightest chainrings on the market.

The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time
A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives. The Narrow Wide teeth guide the chain reliably

The tooth profile is specially designed for use with MTB chains

ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight

RECOMMENDATIONS

• Use the screw set M4x8mm to mount on the crank

• We recommend the use of a clutch system rear derailleur for the best chain security

• It is also a good idea to use a new chain with your new ALUGEAR chainring

• It is recommended to use a well-lubricated chain on every ride. Waxed chains are best.

Chainline is measured from the axis of the centerline of the frame to the center of the tooth of the chainring

A correct chain line is when the middle of the front chainring and the middle of the cassette should be at the same distance from the axis that goes along the middle of the bicycle frame from the front to the back. That means the chain will run completely straight. However, sometimes we have to reduce the offset of large (> 36T) chainrings for MTB so that it fits into the frame and do not touch the chainstay

The hub spacing is measured from the outside faces of the end caps, where they come into contact with the frame's dropouts. The spacing dimension is commonly referred to as the "O.L.D." (Over-Lock-nut Distance)

OFFSET

Offset is the distance from the chainring mounting surface to the outer edge of the wide tooth on the chainring.
