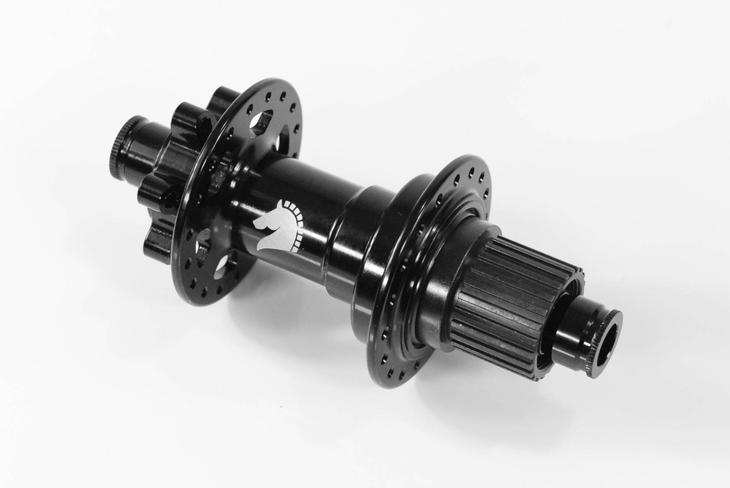

Super Boost Rear Hub

Product Description

Bigger riders, loaded bikes, and rough terrain put greater demands on a rear wheel. This heavy-duty rear hub offers 12 × 157 mm Super Boost spacing for downhill mountain biking and demanding 32-inch-wheel mountain bike, gravel bike, and e-bike builds.

An aluminum hub body, steel axle, and four-bearing design form the core of the hub. Choose 32- or 36-hole drilling for 14-gauge J-bend spokes, with a 6-bolt disc brake mount and 58 mm flange pitch circle diameters on both sides.

For a downhill setup or a loaded large-wheel build, select the drilling that matches your wheel and confirm your frame accepts the 12 × 157 mm axle configuration.

Key Features

• Super Boost / downhill configuration: 12 × 157 mm spacing for compatible frames.
• Heavy-duty design: Intended for bigger riders, loaded bikes, and rough-terrain use.
• Large-wheel applications: For compatible 32-inch-wheel mountain bike, gravel bike, and e-bike builds.
• Four-bearing construction: Two 6902 bearings in the hub; one 6802 and one 6902 bearing in the freehub.
• 28- or 32-hole options: For 14-gauge J-bend spokes.
• 6-bolt disc brake mount: For compatible disc brake rotors.

Specifications
